Marine Loading Platforms

01 / 07

On the jetty head

The concrete jetty and piles are the civil contractor’s; the arms are the arm maker’s. The steel in between is ours.

Scroll to see how it is built · drag to turn it round

02 / 07

Loading platform

A raised platform on columns with a Grip-Strut deck and a stair.

How is it possible at Allmarc?

Kotec newRun10DX CNC beam drilling lineH-beams up to 1,000 x 500 mm

Used here for: Loading platform

Heavy profiles that need precise holes, where plasma cannot do the job: the lower structure and panel borders of a ground flare, and every bolted PEB and multi-storey frame.

• H-beams up to 1,000 x 500 mm
• Drills 3 faces in one pass
• Channels, angles and box sections

All our machinery

Grip-Strut walkway automation linePunching, embossing, edge bending, shearing

Used here for: Loading platform

• Punching, embossing, edge bending, shearing
• Single-piece planks up to 8 m

All our machinery

03 / 07

Arm pedestals

Pedestals rolled from plate, with gusseted base rings that bolt to the arm maker’s flange.

How is it possible at Allmarc?

Three-roll pinch cum pyramid plate rollsRolls plate up to 40 mm

Used here for: Arm pedestals

• Rolls plate up to 40 mm

All our machinery

Deratech Supera-H 12030 fibre laser20 kW

Used here for: Arm pedestals

In 2024 we were the only buyer of Deratech’s 20 kW, 12 m laser.

• 20 kW
• 12 x 3 m bed
• Pallet changer

All our machinery

04 / 07

Access tower and gangway

A braced tower with landings at deck heights, and the gangway down to the ship.

05 / 07

Handrails and ladder

Handrails round every open edge and a caged ladder up the tower.

06 / 07

Coated for the sea

Blasted and coated in our booths under a full-time Level 2 coating inspector.

How is it possible at Allmarc?

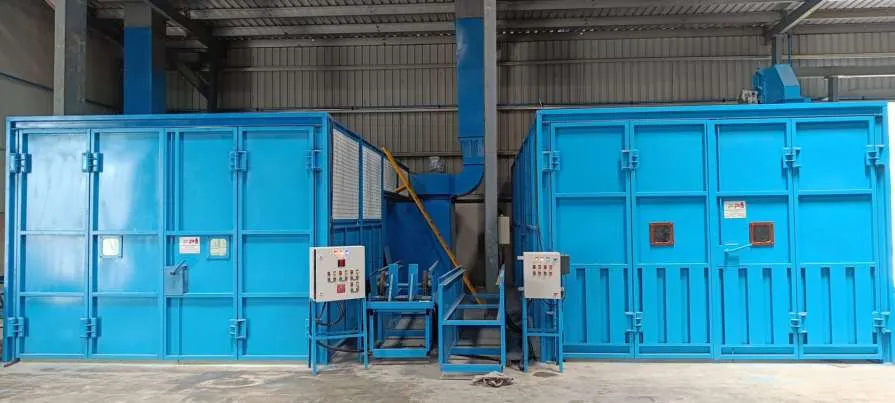

Blasting and painting boothsDust collection

Used here for: Coated for the sea

A Level 2 coating inspector on the floor full time; weather checked and a test before every batch of paint.

• Dust collection
• 15 m paint booth for long sections
• Sa 2.5 blasting

All our machinery

07 / 07

A kit of parts

Platform, pedestals, tower and gangway: every member numbered, match-marked and packed in erection sequence.
