- Toll plazas
- 9
- Lanes
- 2, 8 and 16
- Steel
- 1,200+ T
- Gateway arch
- 38 m tall, 80 m wide
- Canopy
- PTFE tensile fabric
- Status
- Delivered
The project
Long spans over live lanes, a curved fabric roof, and nine sites to build to one programme.
What we made

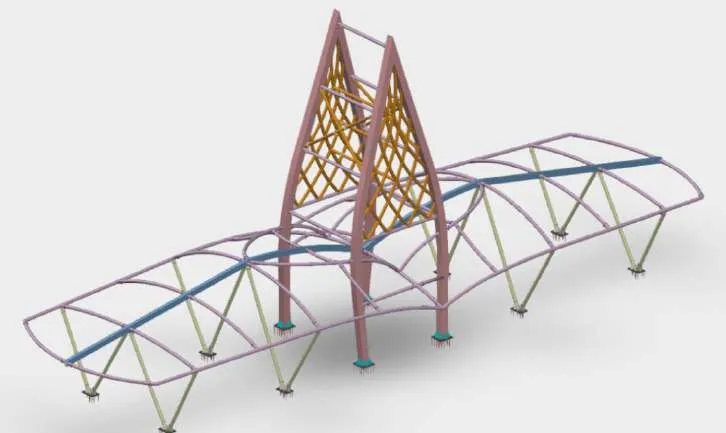

- Detail design and 3D modelling
- Tubular columns and lattice girders
- Bent tube arches
- Erection and commissioning
How we built it
- CNC pipe bendingArches bent from tube on the CNC bender.
- Automatic fit-up and beam build-up lineGirders built up on the automatic line.
All 9 plazas constructed and commissioned, Prayagraj included. The main plaza stands 38 m tall and 80 m wide.
